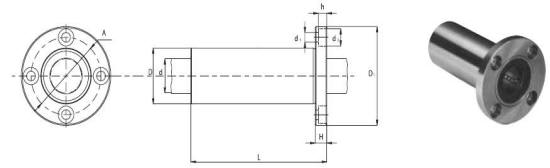

Tuleja toczna - typ KBFL
| Nr ³o¿yska |
Liczba rowków z kulkami |
Waga [N] |
d [mm] |
D [mm] |
L [mm] |
D1 [mm] |
Obci±¿enie [N] |
| C |
C0 |
| KBFL 08 |
4 |
0.53 |
8 |
16 |
45 |
32 |
431 |
784 |
| KBFL 12 |
4 |
1.0 |
12 |
22 |
57 |
42 |
657 |
1200 |
| KBFL 16 |
5 |
1.87 |
16 |
26 |
70 |
46 |
1230 |
2350 |
| KBFL 20 |
5 |
2.6 |
20 |
32 |
80 |
54 |
1400 |
2750 |
| KBFL 25 |
6 |
5.5 |
25 |
40 |
112 |
62 |
1560 |
3140 |
| KBFL 30 |
6 |
6.5 |
30 |
47 |
123 |
76 |
2490 |
5490 |
| KBFL 40 |
6 |
15.6 |
40 |
62 |
154 |
98 |
3430 |
8040 |
| KBFL 50 |
6 |
35 |
50 |
75 |
192 |
112 |
6080 |
15900 |
| KBFL 60 |
6 |
45 |
60 |
90 |
209 |
134 |
7650 |
20000 |
KBFL - d -
³o¿ysko bez uszczelnienia
KBFL - d - PP - ³o¿ysko z uszczelnieniem obustronnym
Przyk³ad: KBFL 30 PP : ³o¿ysko typ KBFL, ¶rednica wa³ka 30 mm, obustronne
uszczelnienie. |
|
|
