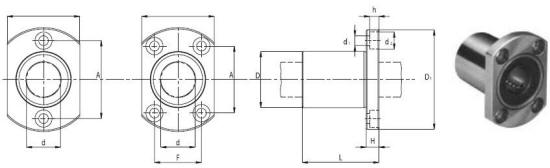

Tuleja toczna - typ KBH
| Nr ³o¿yska |
Liczba rowków z kulkami |
Waga [N] |
d [mm] |
D [mm] |
L [mm] |
D1 [mm] |
Obci±¿enie [N] |
| C |
C0 |
| KBH 06 |
4 |
0.21 |
6 |
12 |
19 |
28 |
210 |
270 |
| KBH 08 |
4 |
0.33 |
8 |
15 |
24 |
32 |
270 |
410 |
| KBH 10 |
4 |
0.64 |
10 |
19 |
29 |
40 |
380 |
560 |
| KBH 12 |
4 |
0.68 |
12 |
21 |
30 |
42 |
420 |
610 |
| KBH 13 |
4 |
0.81 |
13 |
23 |
32 |
43 |
520 |
790 |
| KBH 16 |
5 |
1.12 |
16 |
28 |
37 |
48 |
790 |
1200 |
| KBH 20 |
5 |
1.67 |
20 |
32 |
42 |
54 |
880 |
1400 |
| KBH 25 |
6 |
3.25 |
25 |
40 |
59 |
62 |
1000 |
1600 |
| KBH 30 |
6 |
3.88 |
30 |
45 |
64 |
74 |
1600 |
2800 |
KBH - d -
³o¿ysko bez uszczelnienia
KBH - d - PP - ³o¿ysko z uszczelnieniem obustronnym
Przyk³ad: KBH 30 PP : ³o¿ysko typ KBH, ¶rednica wa³ka 30 mm, obustronne
uszczelnienie. |
|
|
