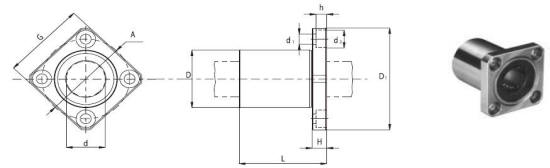

Tuleja toczna - typ KBK
| Nr ³o¿yska |
Liczba rowków z kulkami |
Waga [N] |
d [mm] |
D [mm] |
L [mm] |
D1 [mm] |
Obci±¿enie [N] |
| C |
C0 |
| KBK 08 |
4 |
0.33 |
8 |
16 |
25 |
32 |
270 |
410 |
| KBK 12 |
4 |
0.66 |
12 |
22 |
32 |
42 |
520 |
790 |
| KBK 16 |
5 |
0.90 |
16 |
26 |
36 |
46 |
590 |
910 |
| KBK 20 |
5 |
1.49 |
20 |
32 |
45 |
54 |
880 |
1400 |
| KBK 25 |
6 |
2.95 |
25 |
40 |
58 |
62 |
1000 |
1600 |
| KBK 30 |
6 |
4.6 |
30 |
47 |
68 |
76 |
1600 |
2800 |
| KBK 40 |
6 |
9.95 |
40 |
62 |
80 |
98 |
2200 |
4000 |
| KBK 50 |
6 |
15.5 |
50 |
75 |
100 |
112 |
3900 |
8100 |
| KBK 60 |
6 |
27.4 |
60 |
90 |
125 |
134 |
4800 |
10200 |
KBK - d -
³o¿ysko bez uszczelnienia
KBK - d - PP - ³o¿ysko z uszczelnieniem obustronnym
Przyk³ad: KBK 30 PP : ³o¿ysko typ KBK, ¶rednica wa³ka 30 mm, obustronne
uszczelnienie. |
|
|
