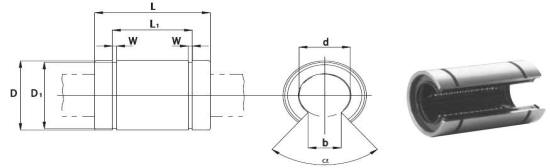

Tuleja toczna - typ KBO
| Nr ³o¿yska |
Liczba rowków z kulkami |
Waga [N] |
d [mm] |
D [mm] |
L [mm] |
Obci±¿enie [N] |
| C |
C0 |
| KBO 10 29 |
3 |
0.23 |
10 |
19 |
29 |
380 |
560 |
| KBO 12 32 |
3 |
0.32 |
12 |
22 |
32 |
520 |
790 |
| KBO 16 36 |
5 |
0.57 |
16 |
26 |
36 |
590 |
910 |
| KBO 20 45 |
5 |
0.91 |
20 |
32 |
45 |
880 |
1400 |
| KBO 25 58 |
6 |
2.15 |
25 |
40 |
58 |
1000 |
1600 |
| KBO 30 68 |
6 |
3.25 |
30 |
47 |
68 |
1600 |
2800 |
| KBO 40 80 |
6 |
7.05 |
40 |
62 |
80 |
2200 |
4000 |
| KBO 50 100 |
6 |
11.3 |
50 |
75 |
100 |
3900 |
8100 |
| KBO 60 125 |
6 |
22.2 |
60 |
90 |
125 |
4800 |
10200 |
KBO - d -
³o¿ysko bez uszczelnienia
KBO - d - PP - ³o¿ysko z uszczelnieniem obustronnym
Przyk³ad: KBO 30 PP : ³o¿ysko typ KBO, ¶rednica wa³ka 30 mm, obustronne
uszczelnienie. |
|
|
