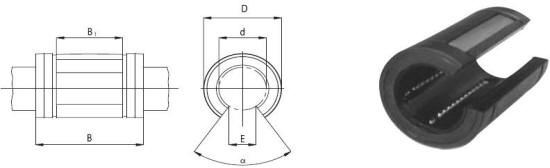

Tuleja toczna - typ KNO
| Nr ³o¿yska |
Liczba rowków z kulkami |
Waga [N] |
d [mm] |
D [mm] |
B [mm] |
B1 [mm] |
Obci±¿enie [N] |
| C |
C0 |
| KNO 12 32 |
4 |
0.18 |
12 |
22 |
32 |
20 |
750 |
600 |
| KNO 16 36 |
4 |
0.22 |
16 |
26 |
36 |
22 |
920 |
730 |
| KNO 20 45 |
5 |
0.51 |
20 |
32 |
45 |
28 |
1560 |
1300 |
| KNO 25 58 |
5 |
1.02 |
25 |
40 |
58 |
40 |
2600 |
2290 |
| KNO 30 68 |
5 |
1.55 |
30 |
47 |
68 |
48 |
3330 |
2910 |
| KNO 40 80 |
5 |
3.0 |
40 |
62 |
80 |
56 |
5720 |
5100 |
| KNO 50 100 |
5 |
4.8 |
50 |
75 |
100 |
72 |
8940 |
7380 |
KNO - d -
³o¿ysko bez uszczelnienia
KNO - d - PP - ³o¿ysko z uszczelnieniem obustronnym
Przyk³ad: KNO 30 PP : ³o¿ysko typ KNO, ¶rednica wa³ka 30 mm, obustronne
uszczelnienie. |
|
|
